Incarcatoare

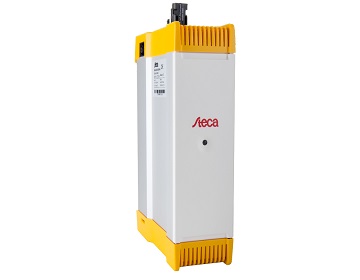

Incarcator StecaGrid 300-M
Description: 300Wac 45 - 135 VDC / 230VAC / 50 Hz IP 20, MC3 connectors, indoor
Dimension: 243 x 176 x 71 mm
Weight: 1.4 kg
AC Output Frequency 48 - 52 Hz
AC output voltage 207 V - 253 V
Ambient temperature -20° C to + 45° C
Consum OFF/Stand-by/ON <0.1 W/0 W/2 W
DC/AC connection MultiContact MC (Solarline 1), MC (Solarline ), or Tyco Solarlok/Wieland Electric GST 18iV plug
Display Two-colour LED
Eficienta % 93.4 %
Feed-in phases Single phase
Grid monitoring Optional, via StecaGrid Control
Max. input power 320 W
Max. input voltage/current 135 V/ 5 A
Max. start voltage 100 V
Maximum output current/power 1.5 A/300 W
Min. input voltage for grid connectied / for rated output 45 V / 64 V
MPP voltage range 45-100 V
Rated AC voltage range 230 V
Rated output power/frequency 300 W/50 Hz
Type of protection IP20
Pentru mai multe detalii, nu ezitati sa ne contactati la unul dintre numerele noastre de telefon: 0230 - 523.930 / 0724. 047.532 sau pe e-mail: office@dataservice.ro
